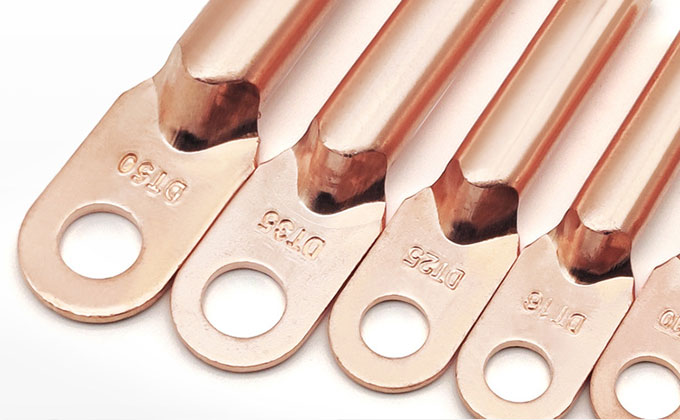

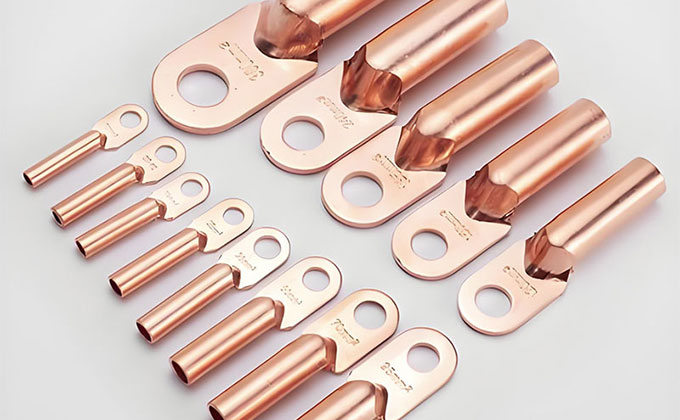

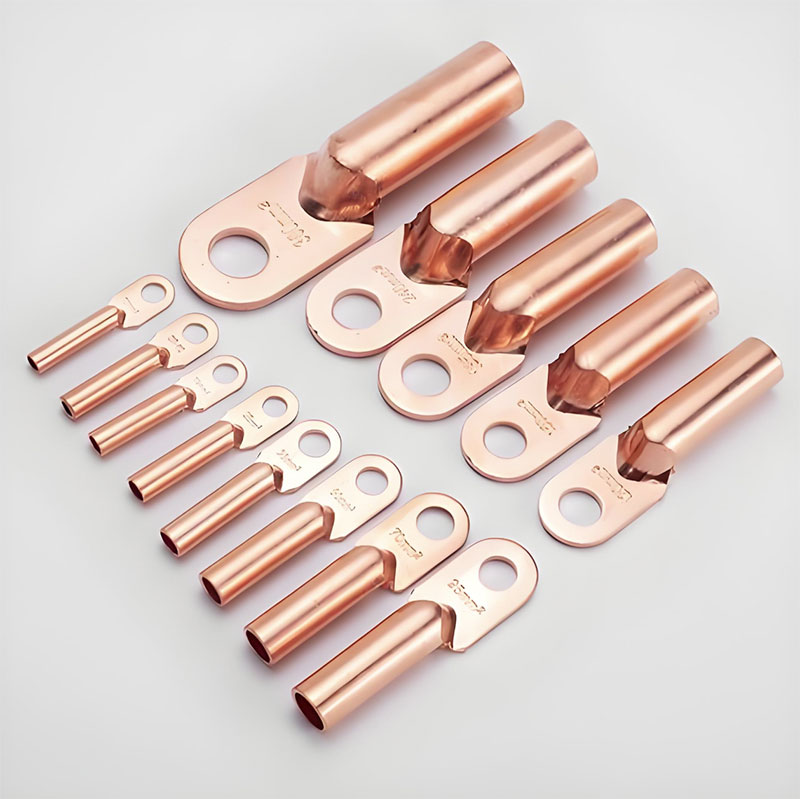

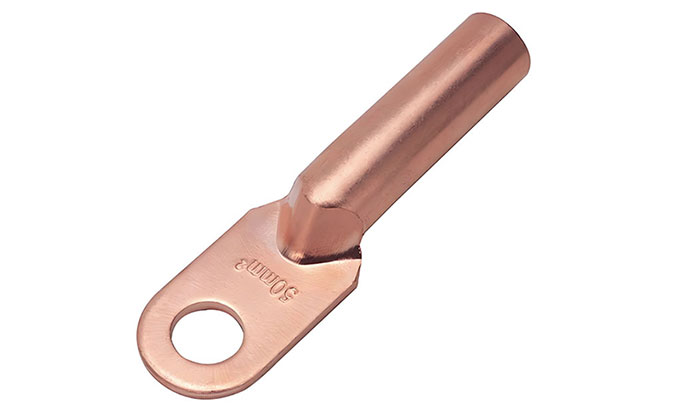

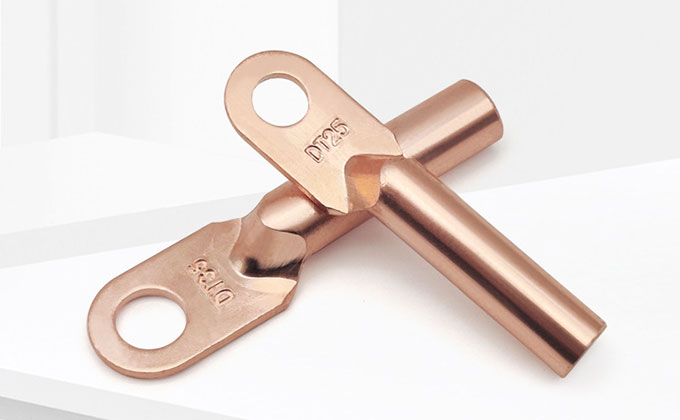

Copper lugs are vital for secure electrical connections, offering exceptional conductivity, durability, and corrosion resistance. Used across industries like power generation and telecommunications, they support various installation methods, such as soldering and crimping. Their reliability and safety make them the preferred choice for professionals in diverse applications.
Features of copper lugs
Our copper lugs offer superior conductivity and durability, ensuring efficient electrical connections that minimize energy loss.
Designed to resist corrosion, they provide long-lasting performance even in harsh environments.
Easy to install with various methods like crimping and soldering, our lugs save valuable time and effort during installation.
Their reliability reduces maintenance costs and lowers the risk of system failures, addressing the critical need for consistent and safe operations.
Choose our copper lugs for peace of mind and optimal performance in your electrical setups.
Application of copper lugs

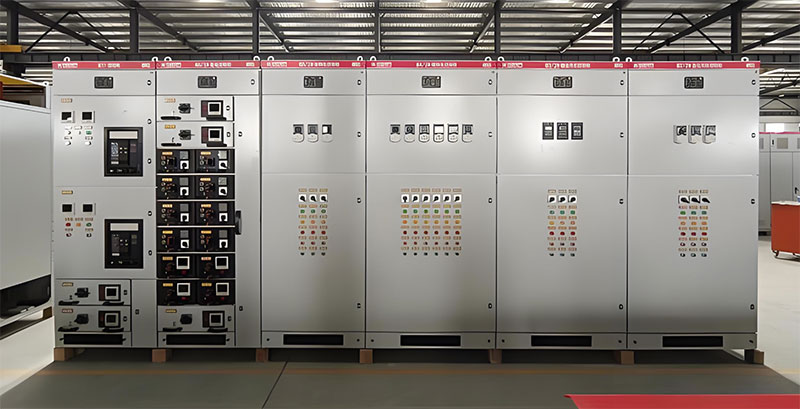

Power Distribution Systems: Providing reliable connections between cables and electrical equipment, essential for stable power supply.

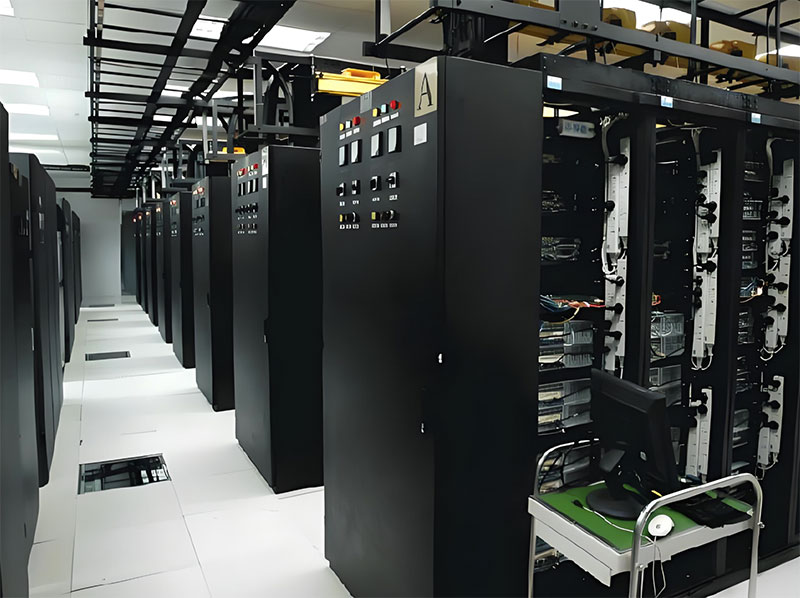

Telecommunications: Ensuring stable signal transmission and connectivity in communication networks.

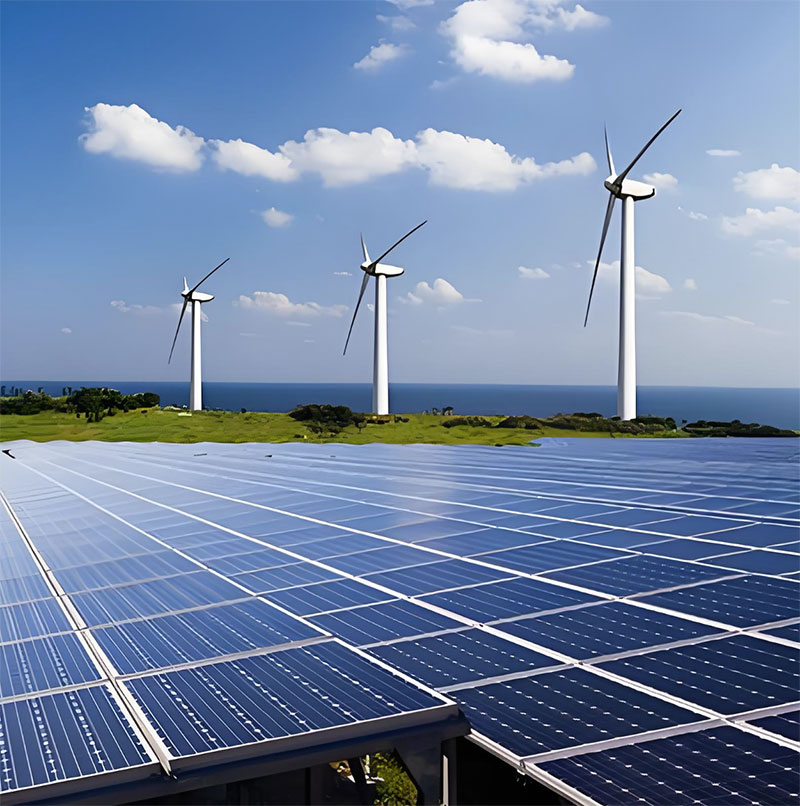

Renewable Energy Systems: Supporting solar and wind power installations by facilitating efficient energy transfer.
Automotive Industry: Used in vehicles for robust electrical connections, enhancing performance and safety.
Marine Applications: Providing durable connections in harsh marine environments, ensuring reliability and longevity.
Industrial Machinery: Ensuring efficient power distribution and connectivity in various industrial equipment.
Parameter
Type | Hole diameterΦ (mm) | Inner diameter (mm) | Outer diameter (mm) | Width (mm) | Length (mm) |
SC1.5-4 | 4 | 2.5 | 3.5 | 6.5 | 18 |
SC1.5-5 | 5 | 2.5 | 3.5 | 7.5 | 18 |
SC1.5-6 | 6 | 2.5 | 3.5 | 9 | 18 |
SC2.5-4 | 4 | 2.8 | 4 | 6.5 | 19.5 |
SC2.5-5 | 5 | 2.8 | 4 | 7.2 | 19.5 |
SC2.5-6 | 6 | 2.8 | 4 | 9.5 | 19.5 |
SC4-4 | 4 | 3.7 | 5 | 7 | 20 |
SC4-5 | 5 | 3.7 | 5 | 7.5 | 20 |
SC4-6 | 6 | 3.7 | 5 | 11 | 20 |
SC4-8 | 8 | 3.7 | 5 | 11 | 20 |
SC6-5 | 5 | 4.8 | 6 | 8 | 24.5 |
SC6-6 | 6 | 4.8 | 6 | 9 | 24.5 |
SC6-8 | 8 | 4.8 | 6 | 10.5 | 24.5 |
SC10-6 | 6 | 5.2 | 6.5 | 10 | 26 |
SC10-8 | 8 | 5.2 | 6.5 | 11.5 | 26 |
SC10-10 | 10 | 5.2 | 6.5 | 14.2 | 26 |
SC16-6 | 6 | 6.2 | 8 | 12 | 31 |
SC16-8 | 8 | 6.2 | 8 | 12 | 31 |
SC16-10 | 10 | 6.2 | 8 | 13 | 31 |
SC16-12 | 12 | 7.2 | 9 | 16.8 | 36 |
SC25-6 | 6 | 7.2 | 9 | 13.2 | 33 |
SC25-8 | 8 | 7.2 | 9 | 13.2 | 33 |
SC25-10 | 10 | 7.2 | 9 | 13.2 | 33 |
SC25-12 | 12 | 7.2 | 9 | 17 | 33 |
SC35-6 | 6 | 8.5 | 10.5 | 15.5 | 37.2 |
SC35-8 | 8 | 8.5 | 10.5 | 15.5 | 37.2 |
SC35-10 | 10 | 8.5 | 10.5 | 15.5 | 37.2 |
SC35-12 | 12 | 8.5 | 10.5 | 15.5 | 37.2 |
SC50-6 | 8 | 10 | 12.4 | 18.2 | 44 |
SC50-10 | 10 | 10 | 12.4 | 18.5 | 44 |
SC50-12 | 12 | 10 | 12.4 | 18.5 | 44 |
SC50-14 | 14 | 10 | 12.4 | 21 | 52 |
SC50-16 | 16 | 10 | 12.4 | 21.2 | 52 |
SC70-8 | 8 | 11.5 | 14.5 | 21.2 | 51 |
SC70-10 | 10 | 11.5 | 14.5 | 21.2 | 51 |
SC70-12 | 12 | 11.5 | 14.5 | 21.2 | 51 |
SC70-14 | 14 | 11.5 | 14.5 | 21.2 | 51 |
SC70-16 | 16 | 11.5 | 14.5 | 23 | 54 |
SC95-8 | 8 | 14 | 17 | 25 | 55 |
SC95-10 | 10 | 14 | 17 | 25 | 55 |
SC95-12 | 12 | 14 | 17 | 25 | 55 |
SC95-14 | 14 | 14 | 17 | 25 | 58 |
SC95-16 | 16 | 14 | 17 | 25 | 58 |
SC120-8 | 8 | 15 | 19 | 28 | 60.5 |
SC120-10 | 10 | 15.2 | 18.9 | 27.8 | 62.8 |
SC120-12 | 12 | 15.2 | 18.9 | 27.8 | 62.8 |
SC150-12 | 12 | 17.4 | 21 | 31 | 68 |
SC150-14 | 14 | 17.4 | 21 | 31 | 68 |
SC150-16 | 16 | 17.4 | 21 | 31 | 68 |
SC185-12 | 12.2 | 18.4 | 22.8 | 34 | 75 |
SC185-14 | 14.2 | 18.4 | 22.8 | 34 | 75 |
