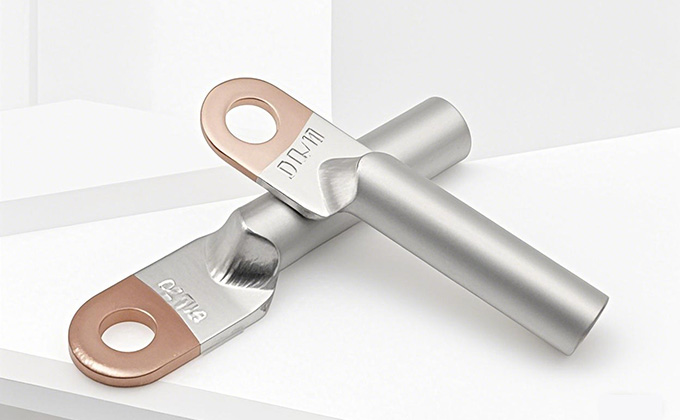

Aluminum to copper lug (often called a bimetallic lug or copper and aluminum terminal) is a specialized electrical connector designed to safely and reliably join an aluminum conductor (like a wire or cable) to a copper terminal, busbar, or another copper conductor.
Features
Eliminate Galvanic Corrosion, Ensure Unshakeable Safety.
Achieve Superior, Long-Lasting Conductivity.
Reduce Maintenance Costs & Prevent Costly Downtime.
Guaranteed Installation Integrity & Standards Compliance.
Versatile & Reliable for Diverse Applications
Application of aluminum to copper lug
Power Distribution & Switchgear

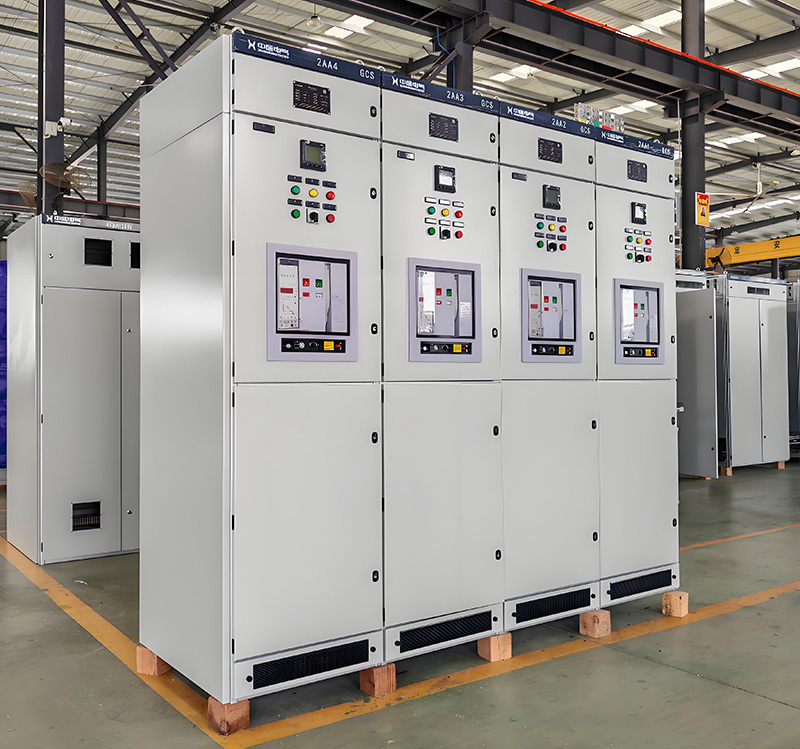

Switchboards & Panelboards: Terminating incoming aluminum feeder cables onto copper busbars or circuit breaker terminals in commercial and industrial buildings.
MCCs (Motor Control Centers): Connecting aluminum power cables to copper stabs or terminals within motor control buckets.
Utility & Substations

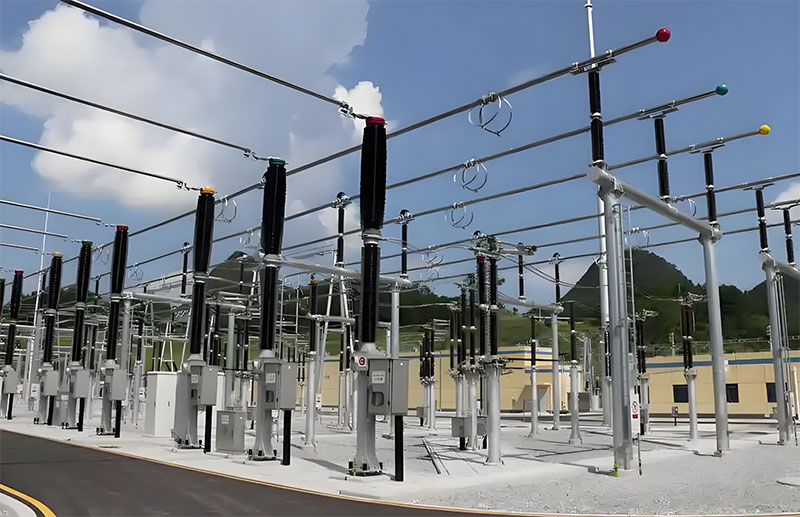

Substation Equipment: Terminating aluminum overhead lines or underground cables onto copper terminals of circuit breakers, disconnectors, transformers, and other substation apparatus.
Earthing & Grounding Systems: In some cases, connecting aluminum grounding conductors to copper ground grids or equipment.
Industrial Machinery & Equipment

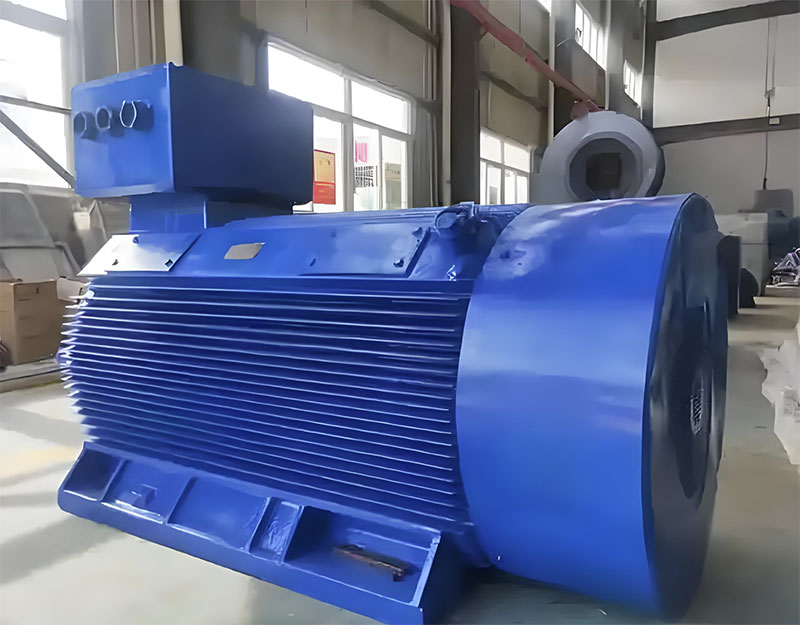

Large Motors & Generators: Connecting aluminum supply cables to the copper terminal boxes of high-power motors and generators.
Heavy Industrial Equipment: For power connections in equipment used in manufacturing plants, processing facilities, and heavy industries where aluminum cabling is often used for cost and weight savings.
Parameter
Type | Hole diameterΦ (mm) | Inner diameter (mm) | Outer diameter (mm) | Width (mm) | Length (mm) |
SC1.5-4 | 4 | 2.5 | 3.5 | 6.5 | 18 |
SC1.5-5 | 5 | 2.5 | 3.5 | 7.5 | 18 |
SC1.5-6 | 6 | 2.5 | 3.5 | 9 | 18 |
SC2.5-4 | 4 | 2.8 | 4 | 6.5 | 19.5 |
SC2.5-5 | 5 | 2.8 | 4 | 7.2 | 19.5 |
SC2.5-6 | 6 | 2.8 | 4 | 9.5 | 19.5 |
SC4-4 | 4 | 3.7 | 5 | 7 | 20 |
SC4-5 | 5 | 3.7 | 5 | 7.5 | 20 |
SC4-6 | 6 | 3.7 | 5 | 11 | 20 |
SC4-8 | 8 | 3.7 | 5 | 11 | 20 |
SC6-5 | 5 | 4.8 | 6 | 8 | 24.5 |
SC6-6 | 6 | 4.8 | 6 | 9 | 24.5 |
SC6-8 | 8 | 4.8 | 6 | 10.5 | 24.5 |
SC10-6 | 6 | 5.2 | 6.5 | 10 | 26 |
SC10-8 | 8 | 5.2 | 6.5 | 11.5 | 26 |
SC10-10 | 10 | 5.2 | 6.5 | 14.2 | 26 |
SC16-6 | 6 | 6.2 | 8 | 12 | 31 |
SC16-8 | 8 | 6.2 | 8 | 12 | 31 |
SC16-10 | 10 | 6.2 | 8 | 13 | 31 |
SC16-12 | 12 | 7.2 | 9 | 16.8 | 36 |
SC25-6 | 6 | 7.2 | 9 | 13.2 | 33 |
SC25-8 | 8 | 7.2 | 9 | 13.2 | 33 |
SC25-10 | 10 | 7.2 | 9 | 13.2 | 33 |
SC25-12 | 12 | 7.2 | 9 | 17 | 33 |
SC35-6 | 6 | 8.5 | 10.5 | 15.5 | 37.2 |
SC35-8 | 8 | 8.5 | 10.5 | 15.5 | 37.2 |
SC35-10 | 10 | 8.5 | 10.5 | 15.5 | 37.2 |
SC35-12 | 12 | 8.5 | 10.5 | 15.5 | 37.2 |
SC50-6 | 8 | 10 | 12.4 | 18.2 | 44 |
SC50-10 | 10 | 10 | 12.4 | 18.5 | 44 |
SC50-12 | 12 | 10 | 12.4 | 18.5 | 44 |
SC50-14 | 14 | 10 | 12.4 | 21 | 52 |
SC50-16 | 16 | 10 | 12.4 | 21.2 | 52 |
SC70-8 | 8 | 11.5 | 14.5 | 21.2 | 51 |
SC70-10 | 10 | 11.5 | 14.5 | 21.2 | 51 |
SC70-12 | 12 | 11.5 | 14.5 | 21.2 | 51 |
SC70-14 | 14 | 11.5 | 14.5 | 21.2 | 51 |
SC70-16 | 16 | 11.5 | 14.5 | 23 | 54 |
SC95-8 | 8 | 14 | 17 | 25 | 55 |
SC95-10 | 10 | 14 | 17 | 25 | 55 |
SC95-12 | 12 | 14 | 17 | 25 | 55 |
SC95-14 | 14 | 14 | 17 | 25 | 58 |
SC95-16 | 16 | 14 | 17 | 25 | 58 |
SC120-8 | 8 | 15 | 19 | 28 | 60.5 |
SC120-10 | 10 | 15.2 | 18.9 | 27.8 | 62.8 |
SC120-12 | 12 | 15.2 | 18.9 | 27.8 | 62.8 |
SC150-12 | 12 | 17.4 | 21 | 31 | 68 |
SC150-14 | 14 | 17.4 | 21 | 31 | 68 |
SC150-16 | 16 | 17.4 | 21 | 31 | 68 |
SC185-12 | 12.2 | 18.4 | 22.8 | 34 | 75 |
SC185-14 | 14.2 | 18.4 | 22.8 | 34 | 75 |
