3003 Aluminum Sheet Plate Brief
3003 aluminum sheet plate is our leading aluminum products. As a representative of Al-Mn series alloy, 3003 aluminum sheet plate is widely used. Its outstanding features are excellent formability, good weldability and corrosion resistance.
In addition, the strength of 3003 aluminum plate is not high, only slightly higher than that of industrial pure aluminum, which is about 10% higher than that of 1100 aluminum plate. It cannot be strengthened by heat treatment, but cold working can be used to improve its mechanical properties.
3003 Aluminum Sheet Plate Features
• Weldable and formable
• Non-heat treatable
• Can be cold worked

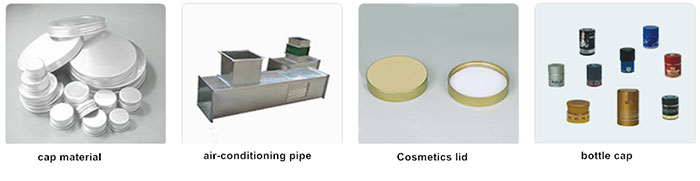

3003 Aluminum Sheet Plate Application
• Power battery shell
• Garage doors
• Appliance parts
• Heat exchangers
• Utensils and kitchen equipment
• Food & chemical handling
• Fan blades
• Gas lines
• Flooring and walkways
• Fuel tanks
Why Choose us?

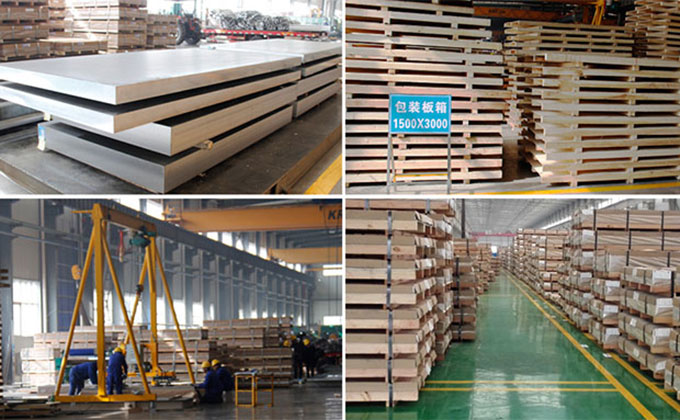

Large inventory
As a professional aluminum factory with many years of export experience, we have various types and states of aluminum sheets in stock.

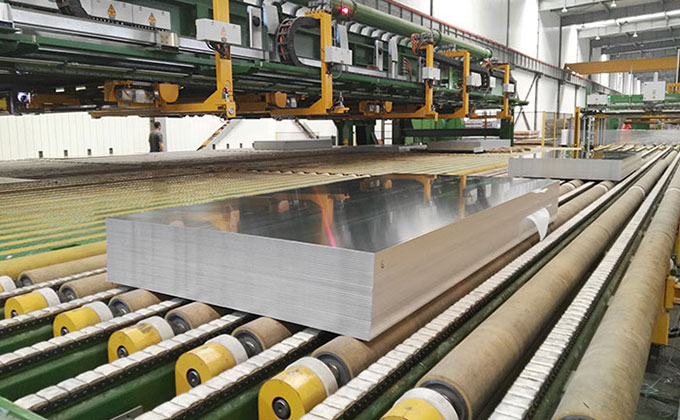

Strong Packaging
We use standard export transport packaging, and bundle steel strips according to the size of the aluminum sheet plate. In addition, we can customize the packaging according to the needs of customers.
Professional Exporter
Our products are exported to more than 50 countries and are known for high quality products, competitive prices and excellent customer service.
Advanced Production Equipment
Advanced continuous casting and rolling production line, efficient production, shorten delivery time.
Parameter
Alloy | 3003 aluminum sheet |
Temper | O,H12,H14,H16 H18,H19,H22,H24 H26,H28,H112 |
Thickness(mm) | 0.2-500 |
Width(mm) | 20-2650 |
Length(mm) | 500-16000 |
Application | packaging, battery, decoration |
Temper | Tensile strength | Yield Strength | Elongation | HB | Shear strength | Fatigue strength |
O | 110 | 42 | 30-40 | 28 | 76 | 48 |
H12 | 130 | 125 | 10-20 | 35 | 83 | 55 |
H14 | 150 | 145 | 8-15 | 40 | 97 | 62 |
H16 | 175 | 175 | 5-14 | 47 | 105 | 69 |
H18 | 200 | 185 | 4-10 | 55 | 110 | 69 |
Alloy | 3003 aluminum sheet |
Temper | O,H12,H14,H16 H18,H19,H22,H24 H26,H28,H112 |
Thickness(mm) | 0.2-500 |
Width(mm) | 20-2650 |
Length(mm) | 500-16000 |
Application | packaging, battery, decoration |
Temper | Tensile strength | Yield Strength | Elongation | HB |
O | 110 | 42 | 30-40 | 28 |
H12 | 130 | 125 | 10-20 | 35 |
H14 | 150 | 145 | 8-15 | 40 |
H16 | 175 | 175 | 5-14 | 47 |
H18 | 200 | 185 | 4-10 | 55 |
